13 engineered models in this family — every one fully custom.
Multi-layer laminated copper busbar with thin dielectric films for low-inductance power di
Bendable insulated busbar built from stacked tinned copper laminates with self-extinguishi
Copper busbar with a smooth red epoxy dielectric coating over the body and bare copper mou
6101 aluminium busbar for weight- and cost-sensitive distribution, sized to match copper t
Copper busbar with continuous solid insulation to ground — compact clearances for tight en

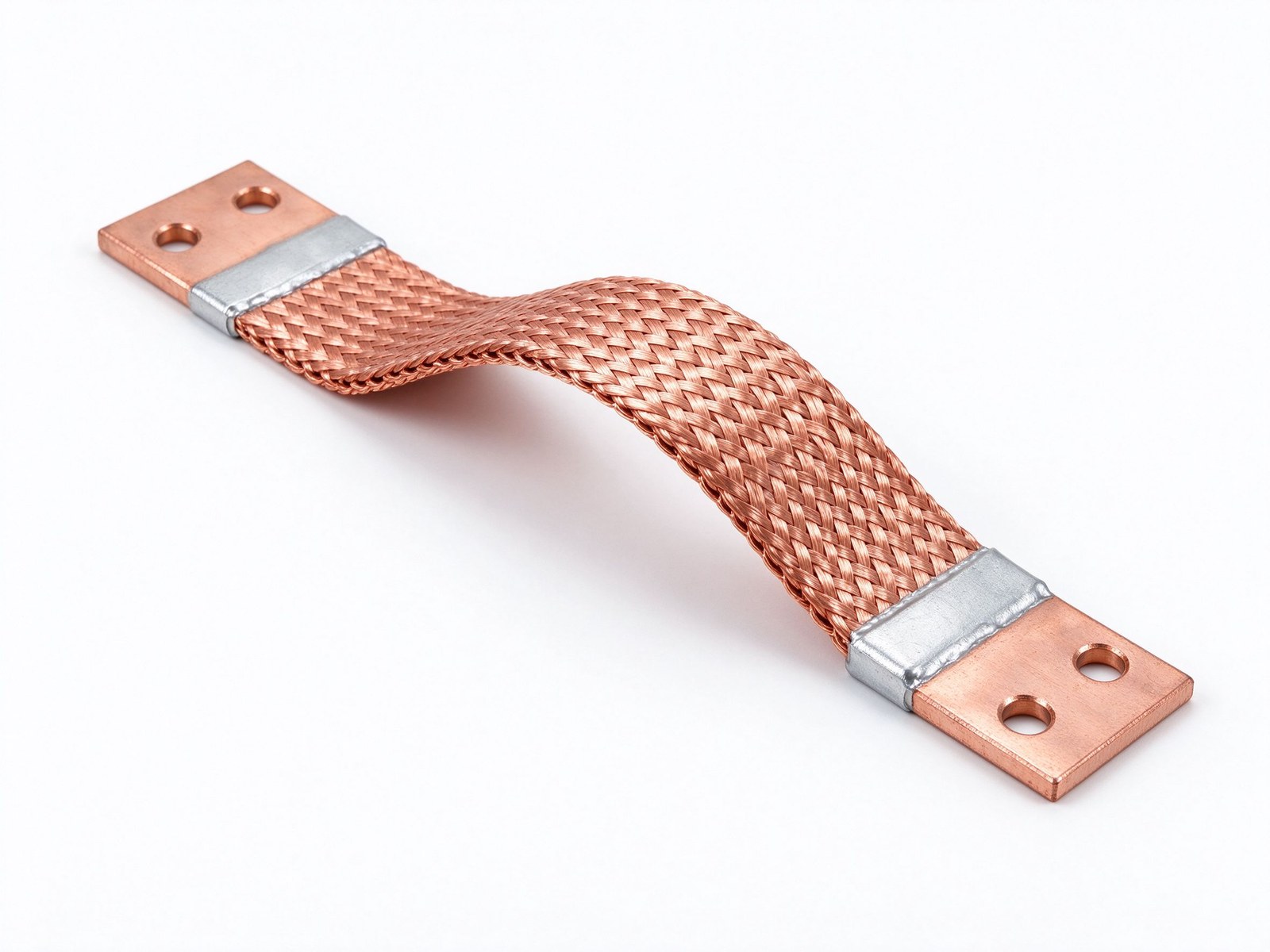

Flexible braided copper connector with welded lugs — absorbs vibration and keeps grounding

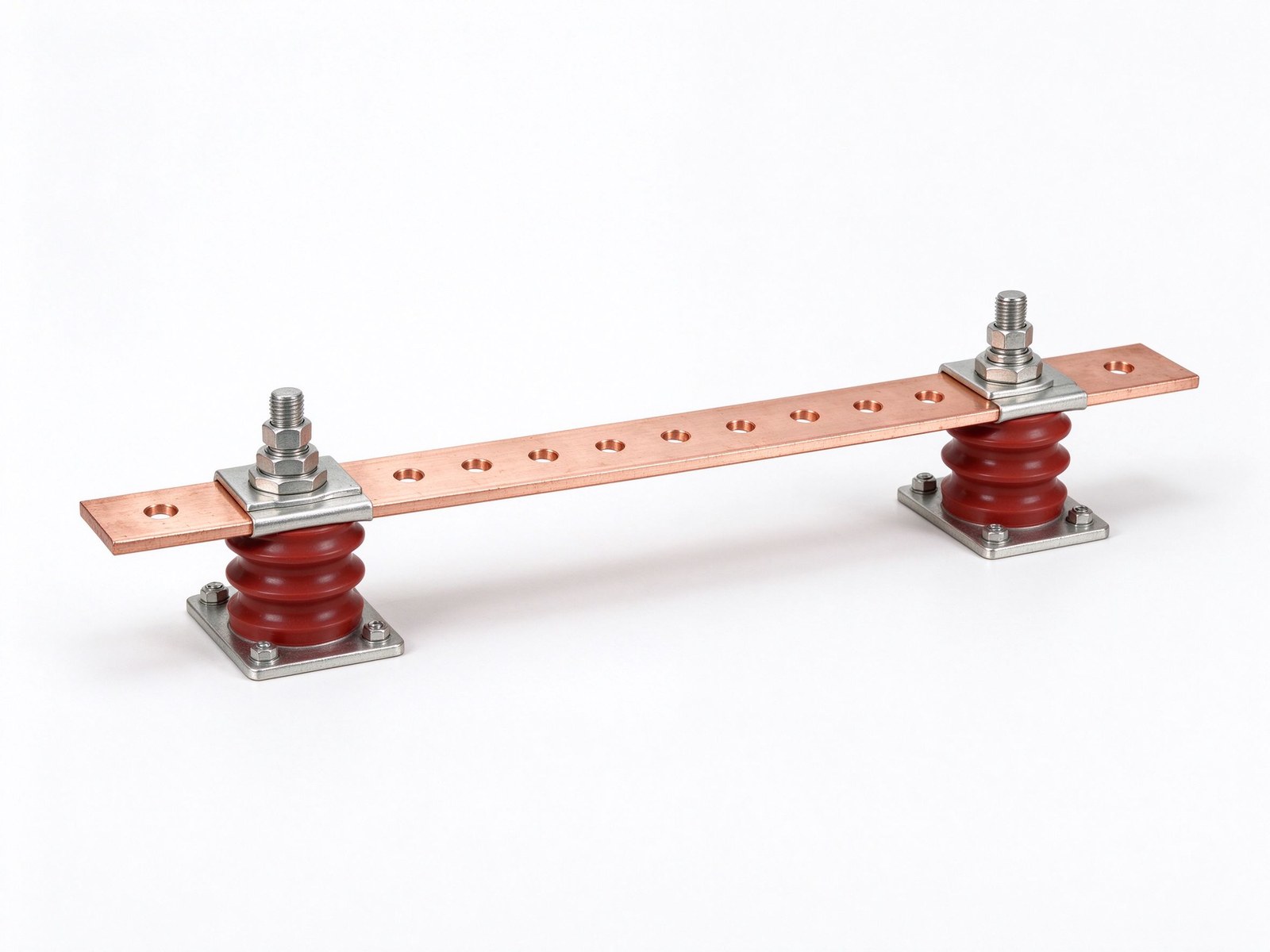

Complete grounding busbar kit — high-purity copper bar with insulators, stainless brackets

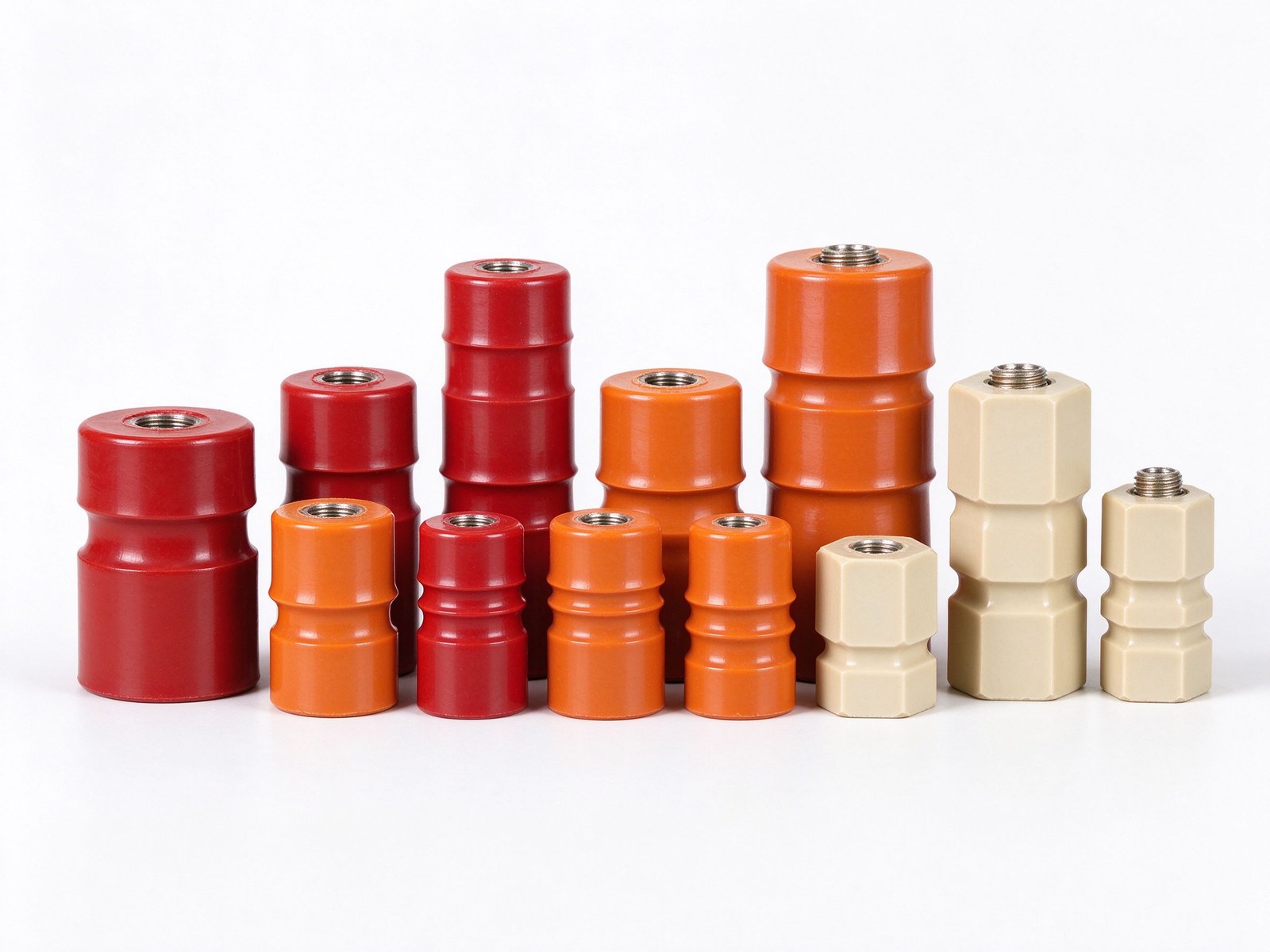

Hex, round and octagonal standoff insulators from 600 V to 2500 V with aluminium or steel
Flexible laminated copper shunt with welded solid lugs — solid-bar performance in tight sp
Battery interconnects — busbars, post straps and terminal connectors for flooded, VRLA, AG
Dielectric film materials for laminated busbar stacks — PET, PEN, Nomex, FR4, Kapton and m
Electrostatic epoxy powder coating service for busbars and connectors — insulation on any
Flexible copper busbar with heat-shrink tubing insulation — crack-, solvent- and tracking-
| Capability | Range |
|---|---|
| Conductor layers | 1–6+ (custom stack-ups) |
| Conductor material | C11000 copper (standard), aluminum on request |
| Plating | Tin (standard) |
| Dielectrics | PET, Nomex, epoxy (DLF) |
| Terminal types | M6/M8 threaded studs, blade tabs, screw terminals, welded tabs, fused links |
| Current rating | Per design, up to ~1000 A |
| Mounting | Integrated brackets, standoffs, edge seals |
| Material | Standard options |
|---|---|
| Conductors | C11000 copper as standard; aluminum available on request |
| Dielectrics | PET, Nomex and epoxy (DLF) films, selected by voltage class and operating temperature |
| Plating | Tin finish for corrosion protection and joint solderability |
Beyond laminated stacks, a power distribution system needs flexible and solid-insulated bars, grounding, connection and insulation building blocks. We supply them all — engineered to the same drawing-based, factory-direct standard:
Bendable insulated busbars and epoxy-coated bars for tight enclosures and vibration-heavy installations.
ExploreGround bar kits and braided connectors that keep facilities bonded with a continuous low-resistance path.
ExploreStandoff insulators, laminated shunts, insulating films and heat-shrink sleeves that complete the busbar system.
ExploreFrom spec review to shipped, tested parts — one accountable supplier.
Hipot, insulation, dimensional, visual and continuity checks per lot — with dimensional and electrical test records maintained and supplied with your shipment on request.
Straight answers from the engineering team.
Send the current profile and terminal types — we will recommend a configuration from this family or quote a custom part.
Send drawings, current ratings and voltage class — DFM feedback and a quotation within one business day.
