Multi-Layer Insulated Busbar

Description

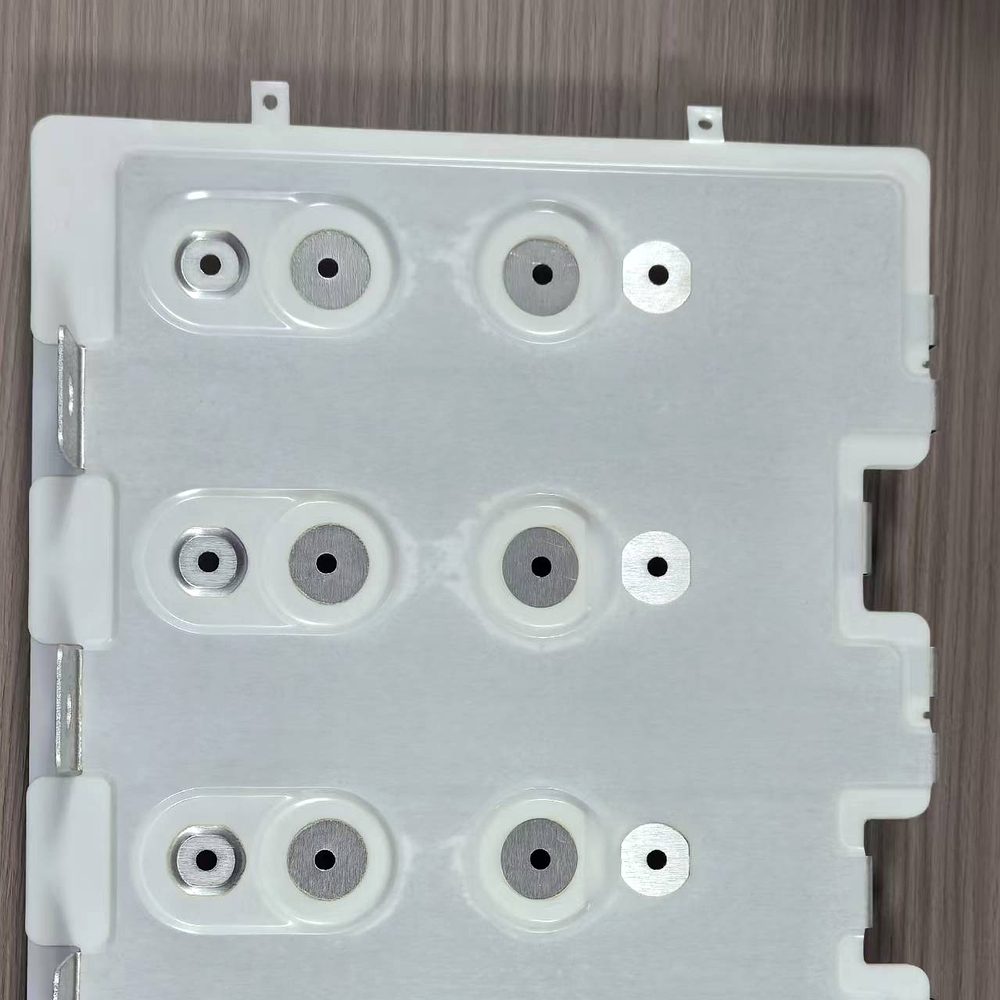

Multi-layer insulated laminated busbar with mixed terminal types for complex distribution layouts.

When one laminate has to carry both power and low-current sense paths, this multi-layer insulated busbar stacks conductors with different cross-sections in a single bonded assembly. Mixed terminal types — studs, holes and tabs — keep the whole distribution layout in one part.

Specifications

Parameter	Value
Conductor	C11000 copper, tin plated
Conductor layers	3+ (custom stack-up)
Dielectric	PET / Nomex / epoxy (DLF), selected by voltage class
Terminals	Mixed: threaded studs, plain holes, tabs
Current rating	Per design, up to ~1000 A
Edge treatment	Full edge sealing
SKU	SY-BB-108

Typical Applications

• Combined power + sense distribution
• Complex module wiring
• Space-constrained pack layouts

Design Notes

Layer stack-up, dielectric selection and terminal mix are defined per drawing. Our engineers review the stack for creepage distances.

All specifications are typical and fully customizable to your drawing. Request a quote for this busbar or send your own specification — our engineers respond within one business day.
