Compact Cell Fusion Busbar

Description

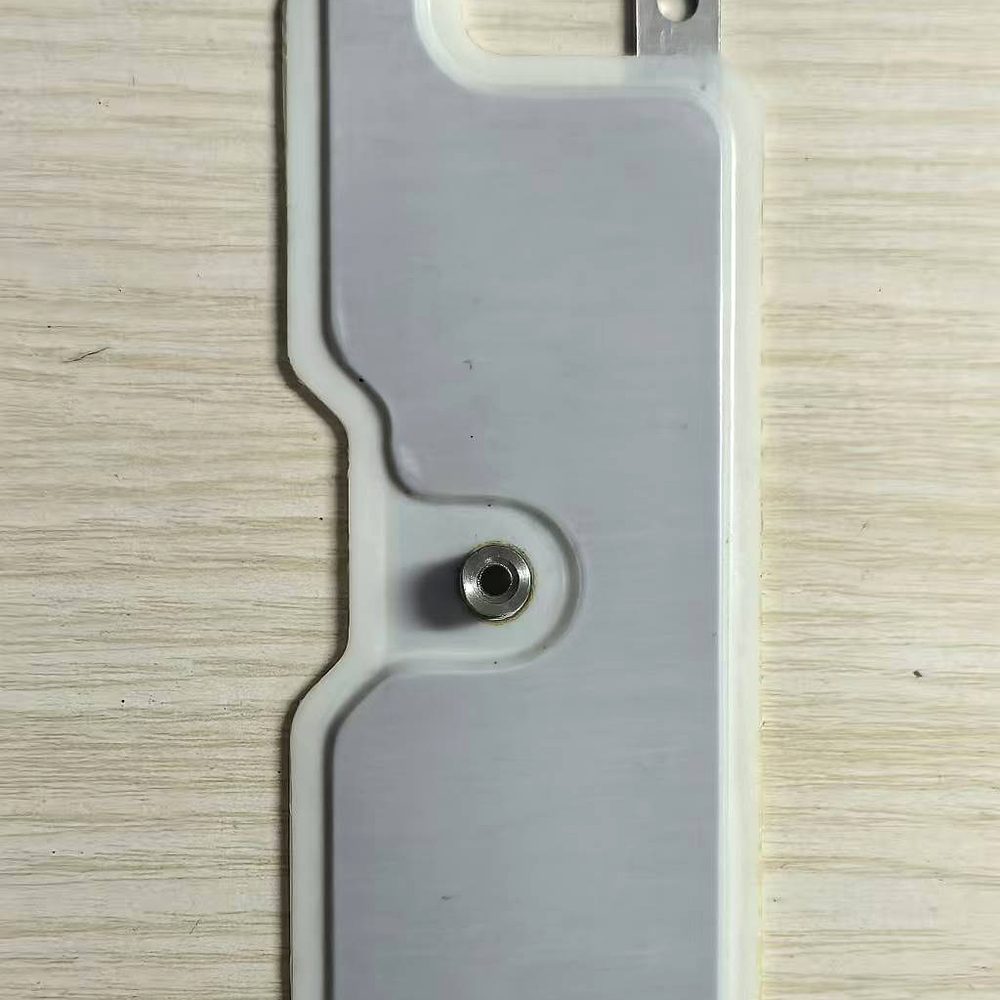

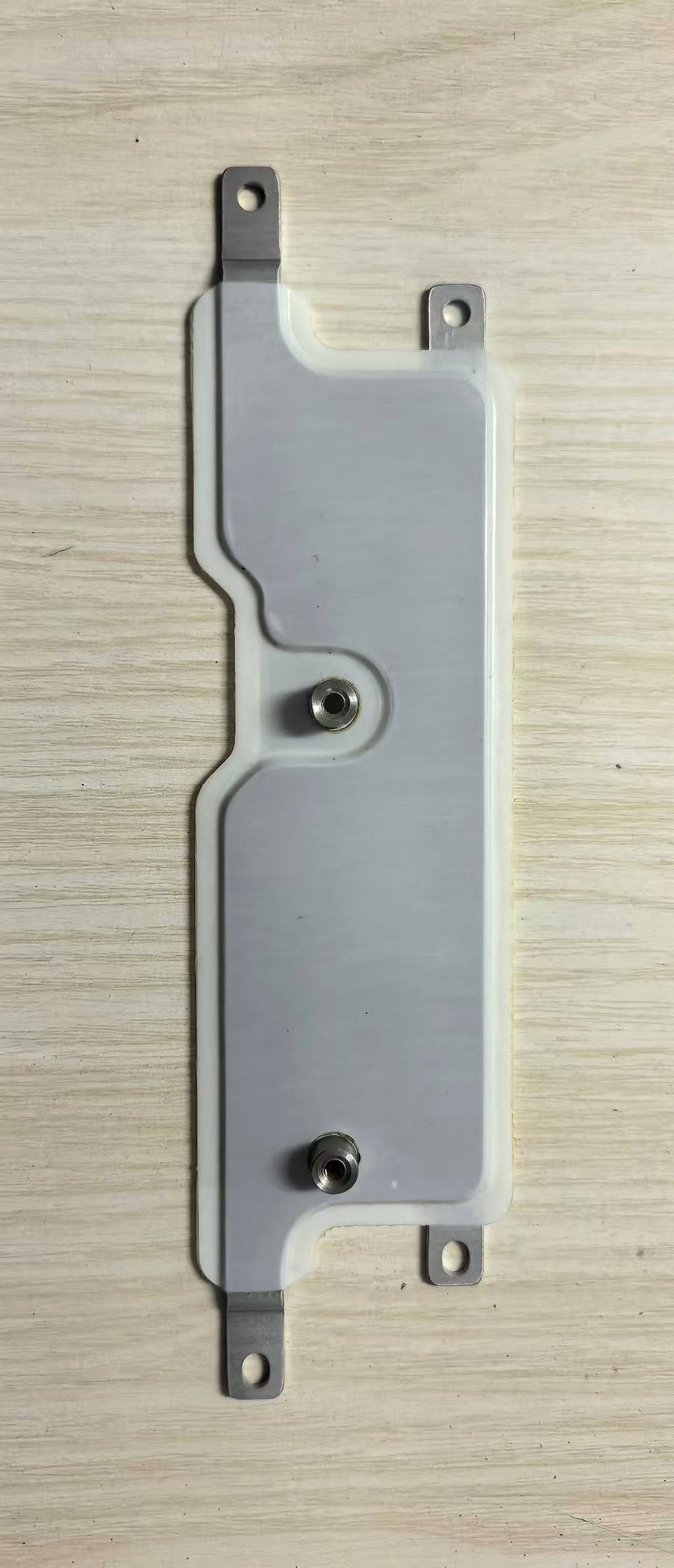

Compact laminated cell fusion busbar with threaded stud for battery management and fused connections.

This compact laminate combines the power path and a fused link in one thin assembly for cell-level protection. The threaded stud provides the measurement or service tap, while the fused section isolates the cell group on a fault — a layout common in BMS-protected packs.

Specifications

Parameter	Value
Conductor	C11000 copper, tin plated
Conductor layers	1–2 (typical)
Dielectric	PET / Nomex / epoxy (DLF), selected by voltage class
Terminals	2 × screw tabs + 1 × threaded stud
Current rating	Per design, up to ~1000 A
Edge treatment	Full edge sealing
SKU	SY-BB-107

Typical Applications

• Cell-level fused links
• BMS-protected battery packs
• Service tap points

Design Notes

Fuse element geometry and rating are designed with your protection requirements. Ask about integrated fuse sections.

All specifications are typical and fully customizable to your drawing. Request a quote for this busbar or send your own specification — our engineers respond within one business day.
