Inverter DC Link Busbar

Description

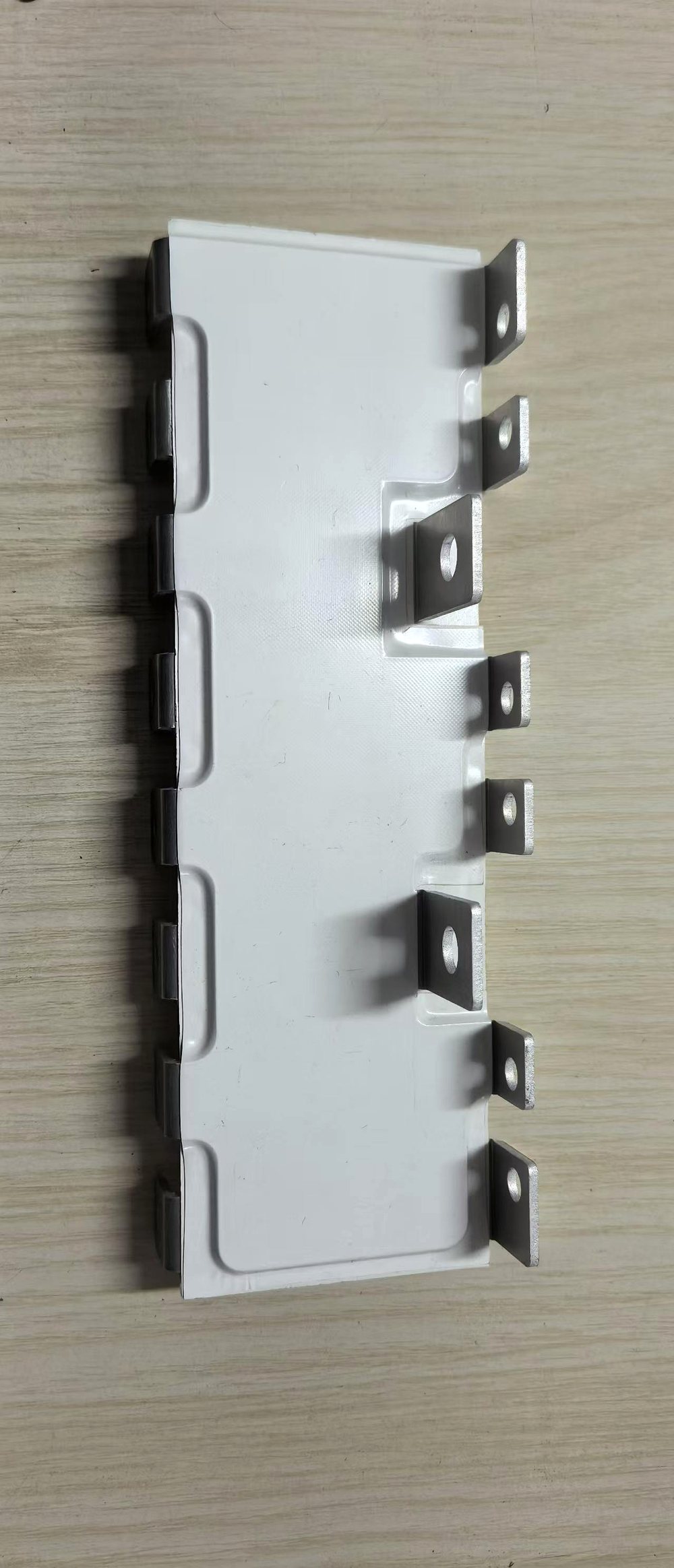

Long laminated DC link busbar with blade terminals for low-inductance inverter designs.

The DC link between the capacitor bank and the inverter bridge sets the commutation loop inductance. This long laminated busbar runs the positive and return conductors face-to-face inside one dielectric stack, keeping the loop tight and the overshoot voltage across the switches down.

Specifications

Parameter	Value
Conductor	C11000 copper, tin plated
Conductor layers	2–4 (typical)
Dielectric	PET / Nomex / epoxy (DLF), selected by voltage class
Terminals	Blade terminals at both ends
Current rating	Per design, up to ~1000 A
Edge treatment	Full edge sealing
SKU	SY-PE-211

Typical Applications

• Solar and storage inverters
• Motor drives
• DC link capacitor connections

Design Notes

Conductor width, spacing and layer count are tuned with your DC link capacitor placement for minimum loop inductance.

All specifications are typical and fully customizable to your drawing. Request a quote for this busbar or send your own specification — our engineers respond within one business day.
