IGBT Module Busbar Set

Description

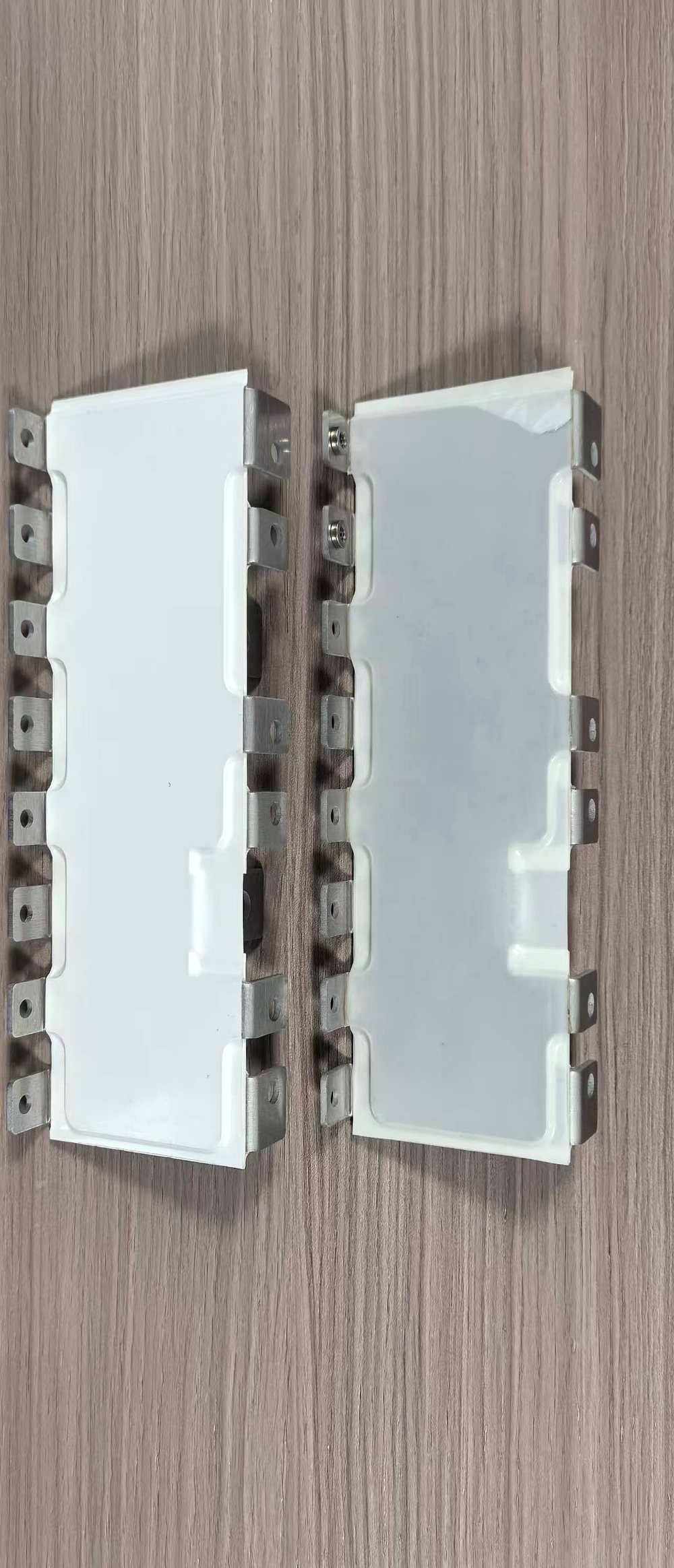

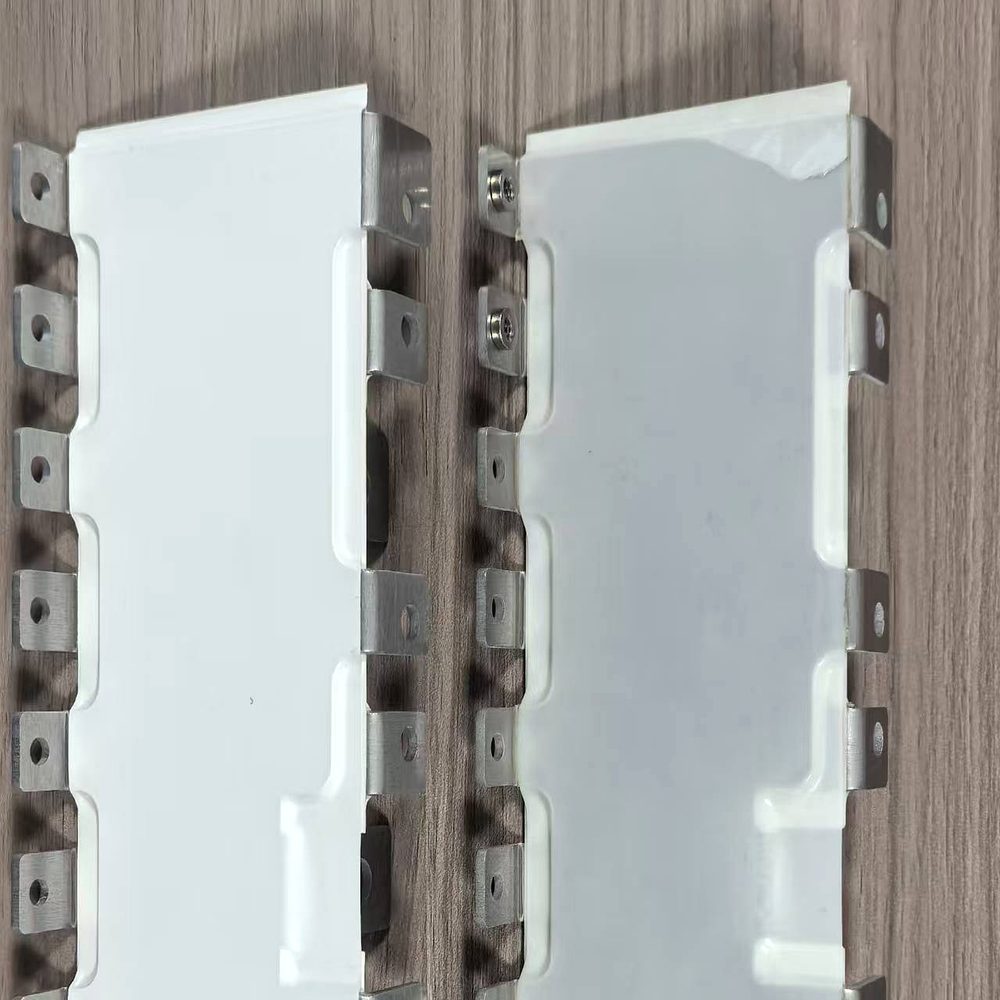

Laminated busbar set for IGBT power modules with matched tab terminals for phase legs.

A matched busbar set for the phase legs of an IGBT power module. The two laminates are tooled together so the tab pitch matches the module pin geometry exactly, and the laminated construction keeps the loop inductance low enough to limit switching overshoot across the devices.

Specifications

Parameter	Value
Conductor	C11000 copper, tin plated
Conductor layers	2–3 (typical)
Dielectric	PET / Nomex / epoxy (DLF), selected by voltage class
Terminals	Blade tabs matched to module pin pitch
Current rating	Per design, up to ~1000 A
Edge treatment	Full edge sealing
SKU	SY-PE-209

Typical Applications

• IGBT / IPM phase legs
• Three-phase inverter bridges
• Welding and industrial power supplies

Design Notes

Send your module datasheet or pin drawing and we will confirm tab pitch, thickness and standoff height.

All specifications are typical and fully customizable to your drawing. Request a quote for this busbar or send your own specification — our engineers respond within one business day.
